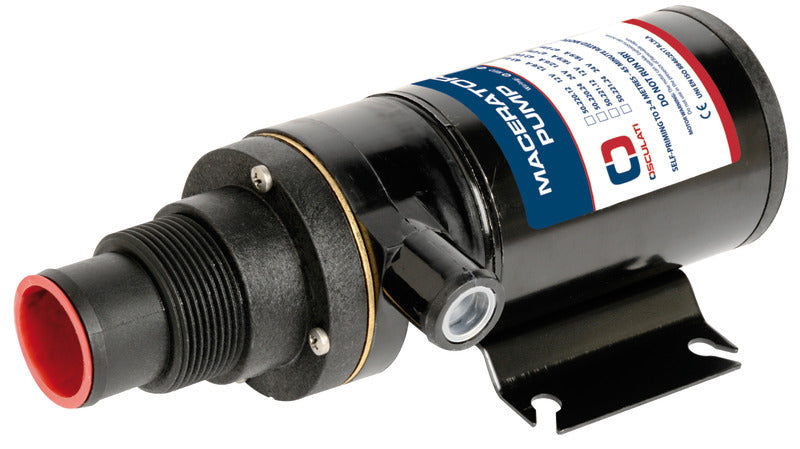

Osculati Self-Priming Macerator Pump – 12 V, 43 L/min

Self-Priming Macerator for Wastewater Tanks

The Osculati 12 V self-priming macerator is designed for draining wastewater tanks aboard your boat. With a rated flow of 43 L/min and 38 mm inlet and 25 mm outlet connections, it provides a compact solution for your onboard waste system.

Technical Specifications

• Osculati reference: 50.220.12
• Power supply: 12 V
• Rated flow: 43 L/min
• Flow at 3 m head: 23 L/min
• Current draw: 12/6 A, as listed in the Osculati catalogue
• Inlet diameter: 38 mm
• Outlet diameter: 25 mm
• Overall dimensions: 240 × 130 × 90 mm
• Replacement impeller reference: 16.193.73

Installation and Maintenance

Check the available installation space, hose sizes and 12 V electrical supply before fitting. Use the manufacturer's installation instructions for wiring and operation, and reference impeller 16.193.73 when sourcing a replacement.
