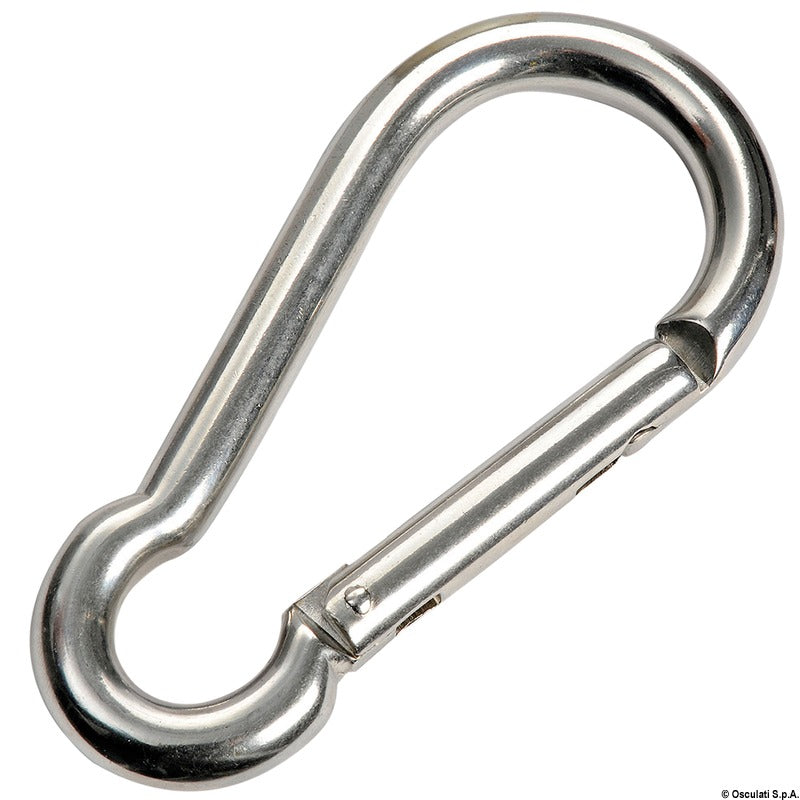

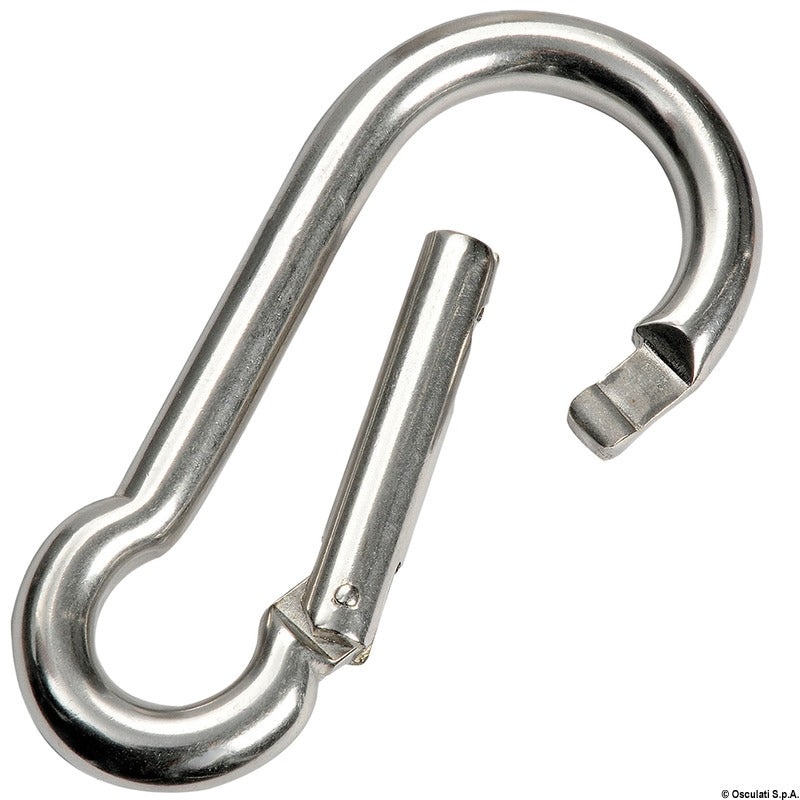

Osculati AISI 316 Stainless Steel Carabiner Hook with Flush Closure

Osculati Stainless Steel Carabiner with Flush Closure

Keep marine accessories and equipment connected with Osculati's 09.190 series carabiner hooks. Made from AISI 316 stainless steel, this version features a flush closure and comes without an eyelet. Choose the size that suits your connection and check the dimensions before ordering.

Product features

• Manufacturer: Osculati
• Series: 09.190
• Material: AISI 316 stainless steel
• Closure: flush closure
• Version: without eyelet
• Available store options: 5 mm, 8 mm, 10 mm and 12 mm

Manufacturer dimensions by option

• 5 mm option — reference 09.190.05: D 5 mm; L 50 mm; E 8 mm.
• 8 mm option — reference 09.190.08: D 8 mm; L 80 mm; E 11 mm.
• 10 mm option — reference 09.190.10: D 10 mm; L 100 mm; E 14 mm.
• 12 mm option — reference 09.190.12: D 11 mm; L 120 mm; E 18 mm.

Sizing note: Osculati names reference 09.190.12 as the 12 mm model, but its specification table lists dimension D as 11 mm. Dimensions D, L and E follow the manufacturer's notation.

Selection and use

Select the required size from the options. This listing is for the version without an eyelet, not the separate 09.191 series with an eyelet. Confirm suitability and the applicable load rating with the manufacturer before load-bearing use. No working or breaking load is claimed here because Osculati's individual product table leaves these ratings blank for the without-eyelet version.
